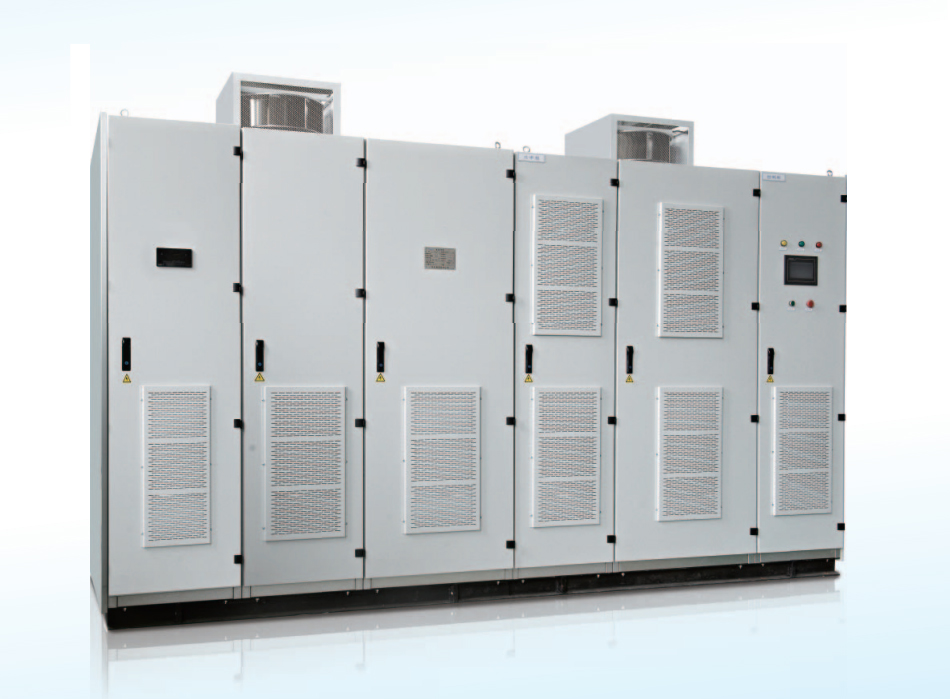

RZHV Medium Voltage Frequency Inverter 3kv 6kv 10kv 3250-7800kw

RZHV Medium Voltage Frequency Inverter 3kv 6kv 10kv 3250-7800kw

Introduction RZHV Medium Voltage Frequency Inverter 3kv 6kv 10kv 3250-7800kw is the third generation of high voltage frequency conversion speed regulating device which is independently developed, designed and produced by Rongzhi Electric. The system adopts the current stable, reliable and advan......

Send Inquiry

Product Description


     RZHV Medium Voltage Frequency Inverter 3kv 6kv 10kv 3250-7800kw  is the third generation of high voltage frequency conversion speed regulating device which is independently developed, designed and produced by Rongzhi Electric. The system adopts the current stable, reliable and advanced power unit cascade technology, with DSP+FPGA+CPL D processor as the control core, PLC as the user interface, and touch screen as the human-computer interaction interface. Inject the most advanced motor vector control algorithm has high control precision, fast response speed, low frequency torque and other characteristics has been widely used in the fan. hoist and other loads of energy-saving speed regulation and process improvement, solve the problem of using, for users to create profit.

Operating Environment

      In order to ensure that the speed regulating device can run stably and reliably for a long time, the installation and working environment of frequency conversion speed regulating device should meet the following requirements.

        The inverter room should be equipped with sufficient air conditioning equipment, dehumidification equipment, dust sealing equipment, to ensure that the operating environment temperature of equipment meets the requirements of 6.2 Operating environment in DL-T994-2006.
        There shall be no conductive or explosive dust, no gas or steam that corrodes metal or damages insulation, the total amount of non-conductive and non-explosive dust <6.5mg/dm3, and the pollution level shall not be greater than grade II.
       The electromagnetic environment of the installation site shall meet the provisions of the following national standards (Electromagnetic compatibility test and Measurement Technology) : GB/ T1766.2 -1998; GB/T17626.4-1998; GB/T 17626.5 1998; GB/T 17626.6 1998; GB/T 17626.8 1998.
       The power supply harmonics comply with GB/T 14549, and the power supply voltage fluctuation ranges from +10% to -35%. The voltage unbalance of the power supply meets the requirements of GB/T15543, and the frequency fluctuation range of the power supply meets the requirements of GB/T15945.Inverter room and superior power distribution system are required to have good lightning protection measures to avoid lightning damage.Party A guarantees that the grounding resistance at the grounding point of the device is less than 4 ohms, and the connecting section between the grounding point of the inverter and the grounding point of the power grid shall not be less than 50mm².If the room installed with frequency converter needs heating, electric heating equipment should be used. Do not use water heating to avoid frequency converter failure caused by heating leakage.heating to avoid frequency converter failure caused by heating leakage.

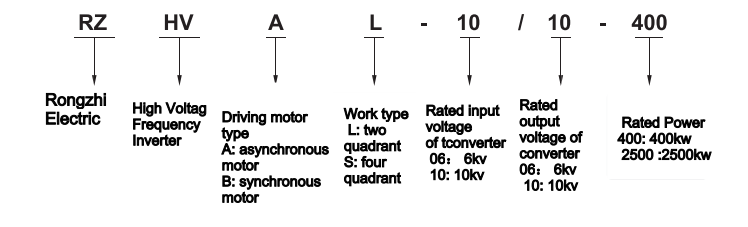

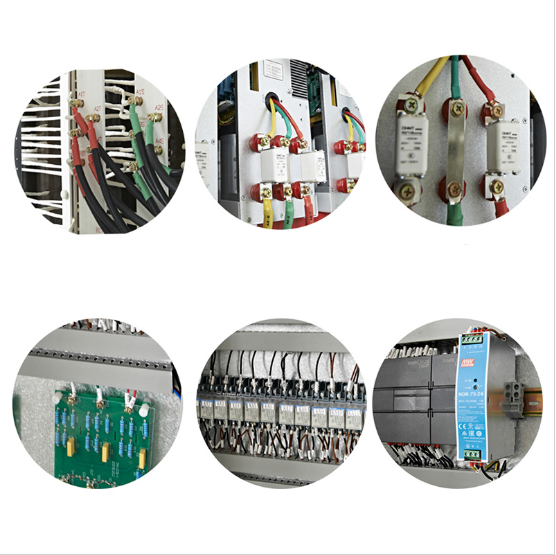

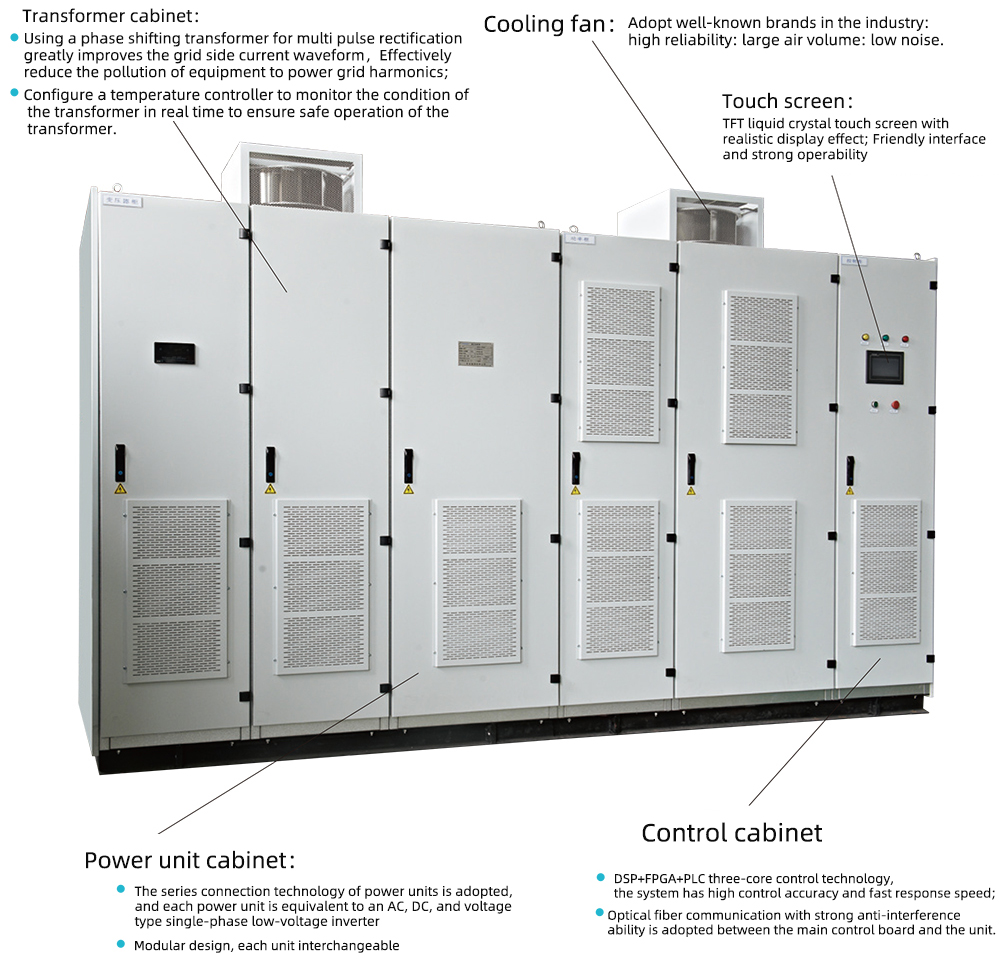

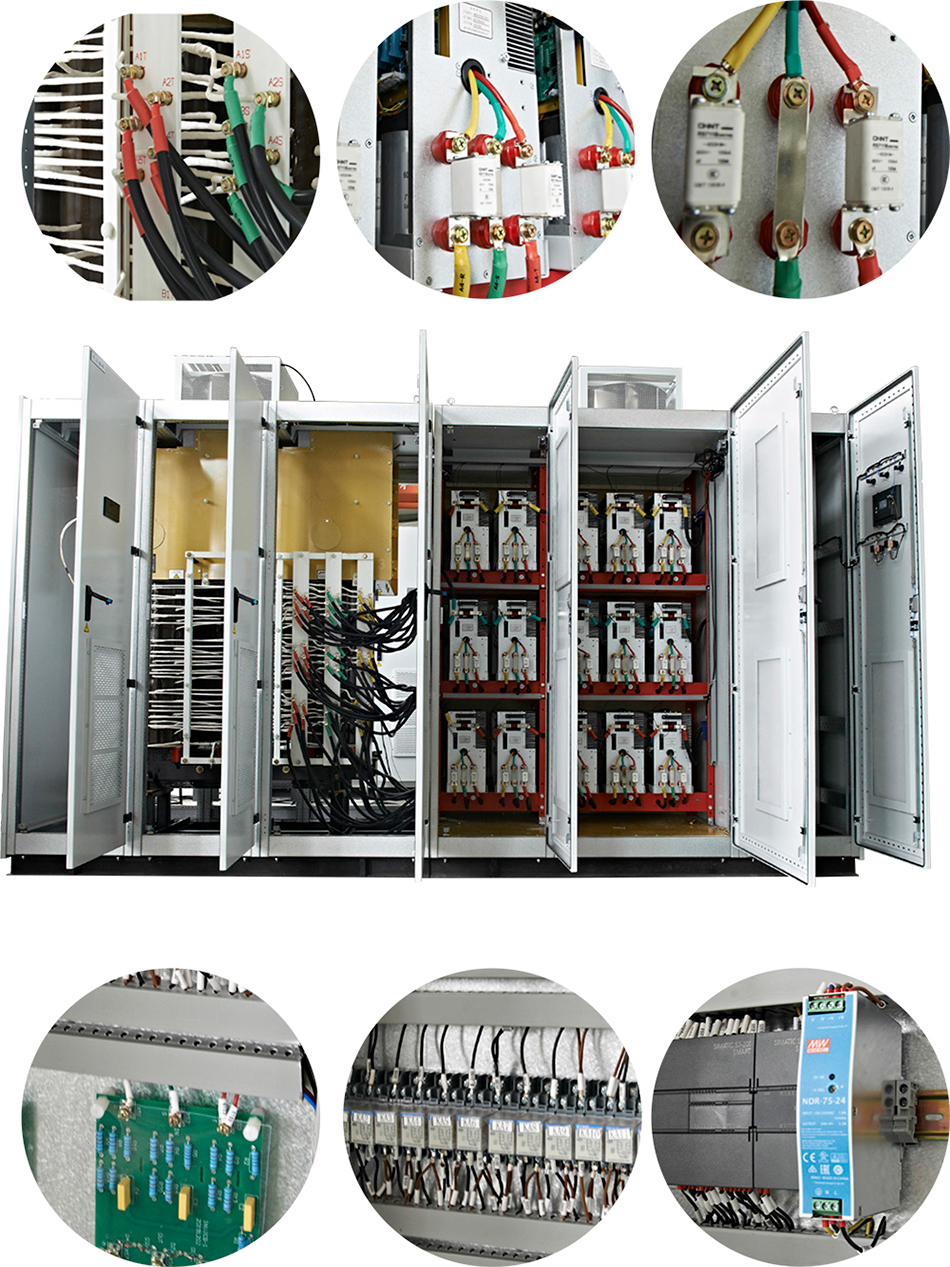

Product Composition

Transformer Cabinet

       The phase shift transformer is used for multi-pulse rectification, which greatly improves the current waveform of the grid side ,

effectively reduces the harmonic pollution caused by the equipment

        A temperature controller is configured to monitor the transformer status all the time and ensure the safe operation of the


Cooling fan

       Adopt well-known brands in the industry: high reliability, large air volume,low noise.

Touch screen

       TFT LCD touch screen, realistic display effect; Friendly interface, strong operability

Power Cabinet

      Using power unit series technology, each power unit is equivalent to a one-voltage single-phase low-voltage converter

Control cabinet

       DSP+FPGA+PLC three-core control technology, the system has high control precision and fast response speed

Optical fiber communication with strong anti-interference ability is used between the main control board and the unit.

Technical Parameters

MVD ItemAMV-IV~250~1500AMV-IV~500~9800AMV-IV~800~12500
Capacity of MVD(kVA)250~1500500~9800800~12500
Apply motor Power(kW)200~1250400~7800630~10000
Rated input Current(A)50~30050~96050~780
Rated input Voltage(V)3000±10%6000±10%10000±10%
Rated input frequency(Hz)45~55
Input power factor0.96(>20% Load)
EffiencyUnder Rated load>0.95
Range of output frequency(Hz)5~60(Other frequency should be stated before booking)
Output frequency resolution (Hz)0.01
Overloading120% anti-time limit of 1 minute, 150% immediate protection
Analog input2 lines(0~10)V/(4~20)mA
Analog Output4 lines(0~10)V/(4~20)mA
Acceleration time(s)0.1~3000
Input/Ouput Switch QtyStandard Setting: Input 6,output 6 lines; Can be options
Inner earthing Resistance(Ω)<0.1
Ambient(°C)0~40 (°C)
Storage / transport temperature(°C)-40~70(°C)
CoolingAir Cooling
Running Decibel(dB)≤85
Ambient humidity<90%,No Congeal
Install Altitude(m)≤1000M,If more than 1000meter,need to booked.
IP ClassIP4X
Diameter Size(mm)4800×2450×1300200~630KW6500×2450×1300400~3250KW7800×2450×1300630~5000KW
Net Weight(kg)3000~5000200~630KW6000~8000400~3250KW8000~140006300~5000KW

ItemTwo LimitFour limit
InputVoltage ClassesAC3PHAC3PH
Voltage Fluctuation Range-20%-+10%
Voltage Frenquency 50/60Hz;±5%
Power Factor≥ 0.97(full load)
System Efficiency≥ 0.96(full load)
Current Harmonics≤ 4%≤ 2% ≤ 4%
OutputVoltage Range0- Rated Voltage
Frequency Range0-120Hz; can be customized
Current Harmonics≤ 4%≤ 2%
Control PerformanceControl ModeHigh performance VF control,open-loop vector,close-loop vector control
Speed Ratio1:50(VF);1:100(SVC);1:200(VC)
Velocity Control Accuracy±1%(VF); ±0.4%(SVC); ±0.2%(VC)
Torque Response Time< 200ms(SVC);< 100ms(VC)
Pull-in Torque0.5Hz150% rated torque(SVC);0Hz180% rated torque(VC)
Overload Protection120%:120s;150%:5s;200%: protection150%:60S;200%: protection
Add-subtract Speed Time0-6000S, can be customized
Signal Distribution UnitOn-off Input18 channels digital input (expandable, programmable)
On-off Output12 channels digital output (expandable, programmable)
Analog InputFour analog inputs (0-10V or 0-20mA))
Analog Output2 channels analog input (0-10V or 0-20mA)
ProtectionSystem protection Overcurrent, overvoltage, undervoltage, overload, phase loss, imbalance, overheat, overtemperature, access control, communication, etc
Cell protectionUndervoltage, overvoltage, overtemperature, phase loss, optical fiber, overcurrent, etc
Human-computer interface10 inch touch screen
Communication way Support Modbus agreement,profibus, Profinet optional
Installation MethodCabinet assembly
Protection gradeIP30
Noise Level≤ 75dB
Incoming / outgoing linesInto the out
Cooling TypeForced air cooling
control sourceAC380V,three-phase four-wire
Mean time to failure50000h
Operating ambient temperature-20℃ -+40℃
Altitude1000m below,1000m ,each 100m Derating  1%
Storage temperatureStored in free from dust, direct sunlight, combustible or corrosive gas, oil, water vapor and vibration
Vibration amplitude0.59g  below

Product Feature

1.Three control techniques

● High performance VF control: motor universal control mode, support a variety of control curves and VF separation function

● Open loop vector :high precision control mode, no need to install speed sensor

● Closed-loop vector :ultra high precision control mode, can support additional encoder

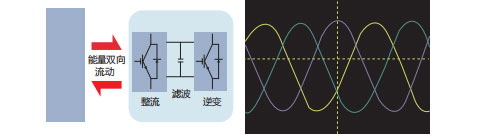

2.Four quadrant drive technology

The power unit uses IGBT for rectification to realize bi-directional flow of capacity, energy saving and environmental protection. Full power feedback capability.

3.LVRT low voltage crossing technology

Wide range voltage immunity.

The system has AVR (automatic voltage regulation)

function to meet the harsh power grid environment:

85%-85% derating output

85%-110% full load output

110%-120% derating output

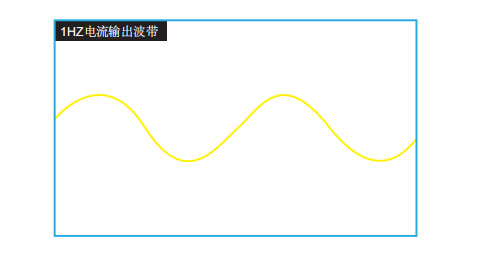

4.Excellent low frequency control technology

Advanced dead zone compensation technology, good low frequency waveform; The optimized low frequency oscillation suppression algorithm will not cause motor resonance.

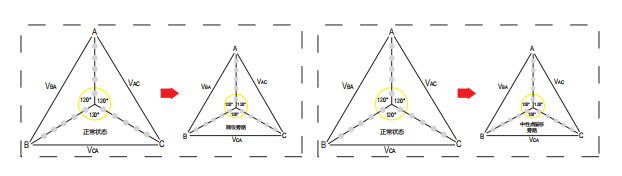

5.Unit bypass technique

Same bypass. When a unit fails, the system automatically bypasses each corresponding unit, which is suitable for derating operations Neutral offset bypass. High voltage output capacity, strong field adaptability.

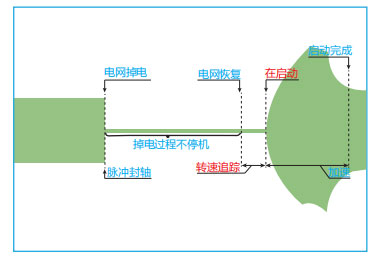

6.Full frequency speed tracking

The system can accurately track the current speed and direction of the motor without the need to install speed sensors. The system can start automatically when the power failure is recovered within the specified time.

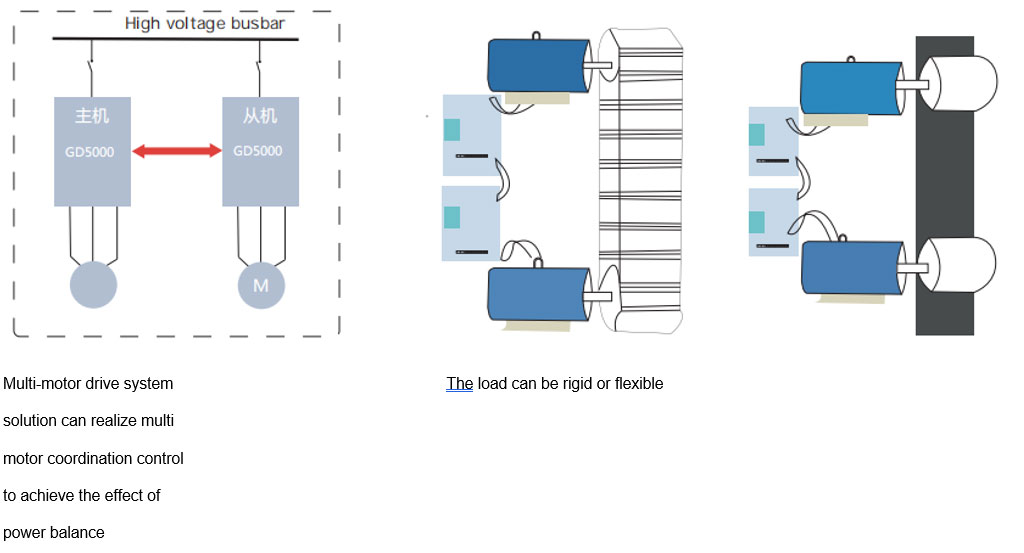

7.Master control technology

●The host and slave are connected by CAN bus to balance the power of multiple devices.

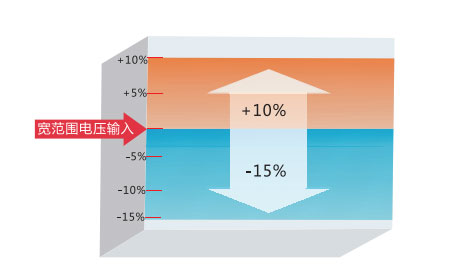

● Wide input voltage range, more suitable for domestic power grid conditions.

● No special requirements for motor, suitable for ordinary high voltage motor, no length limit for motor cable.

● Equipped with a comprehensive operation monitoring system, with up to tens of thousands of operation log monitoring, can timely and accurately lock the fault point.

● Friendly all-Chinese interface and perfect self-diagnosis function.
