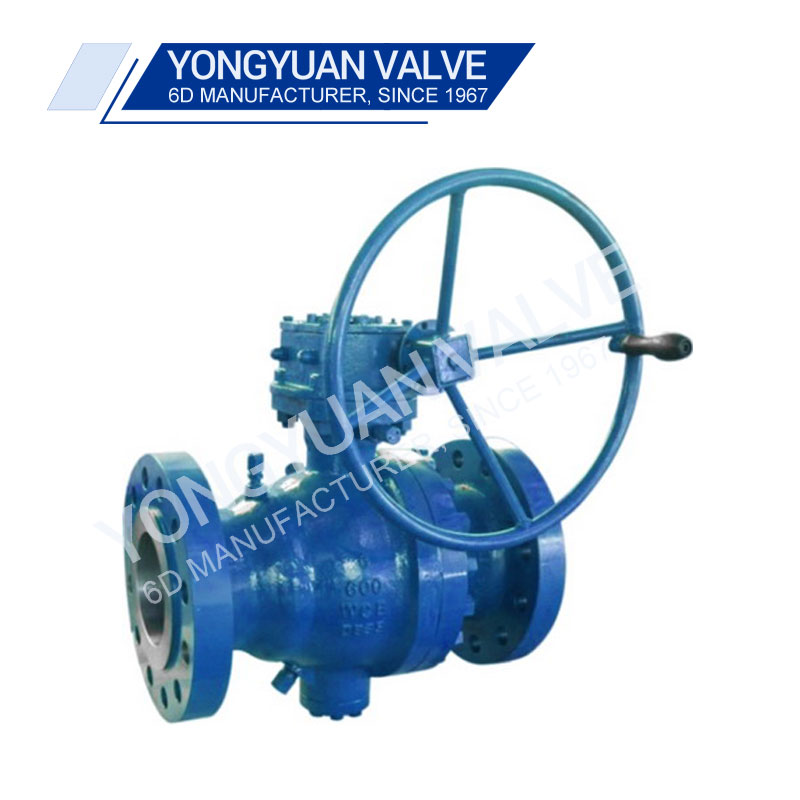

Reliable Flow Control: 2-Piece Trunnion Ball Valve Built to API 6D

2025-04-14

For industries where flow control must be precise, safe, and fully compliant with international standards, the API 6D 2-Piece Trunnion Ball Valve is a trusted solution. Designed with durability and performance in mind, this valve is ideal for critical applications across the oil & gas, petrochemical, and power generation sectors. Its robust two-piece bolted construction, combined with a range of pressure classes and safety features, ensures long-term reliability in demanding environments.


Key Features

· Two-Piece Bolted Body Construction

 The valve features a flanged-end, two-piece bolted design, offering ease of installation, maintenance, and internal inspection without compromising strength.

· Trunnion-Mounted Ball Design

 Ideal for high-pressure environments, the trunnion ball design minimizes operating torque and provides stable sealing across a wide pressure range.

· Blowout-Proof Stem

 An anti-blowout stem design enhances safety during maintenance and operation, preventing stem ejection under pressure.

· Fire-Safe Construction

 Equipped with graphite fire-safe rings, the valve provides an additional layer of protection against external leakage in fire conditions.

· ISO 5211 Mounting Pad

 A standard ISO 5211 mounting pad allows for easy automation with electric or pneumatic actuators, simplifying integration into automated systems.


Materials and Construction

· Body and Adapter Material: Carbon Steel WCB

 Known for its strength and durability, WCB is a widely used material suitable for a range of process fluids and temperature conditions.

· Flange Connection: In compliance with ASME B16.5 standards, ensuring compatibility with global piping systems.


Pressure Class Options

To suit a variety of operational requirements, the valve is available in the following ANSI pressure classes:

· Class 150

· Class 300

· Class 600

These options give engineers and operators the flexibility to select the right valve for system pressures and conditions.


Compliance and Certifications

The API 6D 2-Piece Trunnion Ball Valve is manufactured to meet key industry standards, including:

· API 6D – Specification for pipeline valves

· ASME B16.34 – Valves: Flanged, Threaded, and Welding End

· ASME B16.10 – Face-to-Face and End-to-End Dimensions

· ASME B16.5 – Pipe Flanges and Flanged Fittings

· BS 5351 – Specification for Steel Ball Valves

This ensures confidence in safety, performance, and global compatibility.


The API 6D 2-Piece Trunnion Ball Valve combines precision engineering, robust materials, and international standard compliance to deliver a valve solution you can trust. Whether managing high-pressure fluids or protecting against external risks, this valve is built to perform — safely, efficiently, and reliably.
