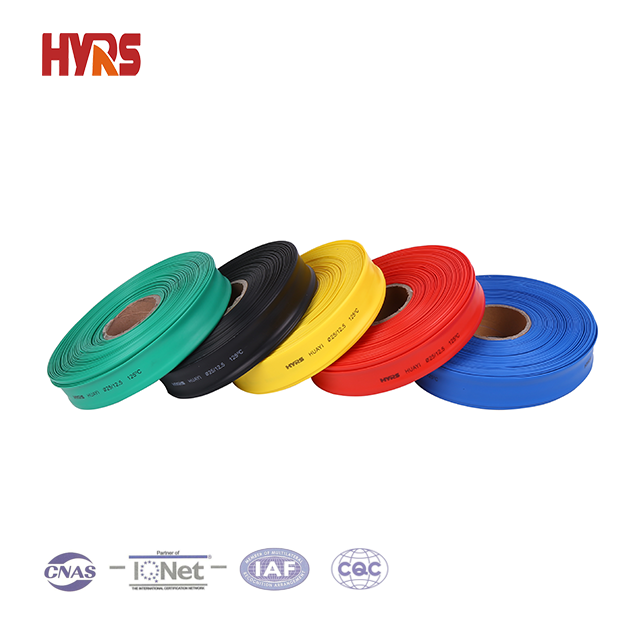

Precision in Action: Installing Low Voltage Heat Shrinkable Tubes with Expertise

Introduction:

Low voltage heat shrinkable tubes, with their versatility and resilience, have become indispensable in electrical insulation. However, to unlock their full potential, it is crucial to adhere to specific installation procedures and utilize the right tools. In this blog post, we will delve into the precision required for installing these tubes, exploring the recommended procedures and tools that ensure a seamless application, longevity, and optimal performance.

1. Selecting the Right Size and Type:

  - Crucial First Step: Before diving into the installation process, it is imperative to select the right size and type of heat shrinkable tube for the application.

  - Considerations: Take into account the diameter of the cables, wires, or components, as well as the environmental factors the tubes will be exposed to. This ensures a snug fit and optimal performance.

2. Surface Preparation:

  - Clean and Dry Surfaces: Ensure that the surfaces to be covered by the tubes are clean and dry. Any contaminants or moisture can impact the adhesion and effectiveness of the tube.

  - Tools: Use cleaning agents, brushes, or compressed air to remove dirt, oil, or other substances from the surfaces.

3. Cutting Tubes to Appropriate Lengths:

  - Precision in Length: Cut the heat shrinkable tubes to the appropriate lengths, allowing sufficient coverage for the intended area.

  - Tools: Use sharp scissors, knives, or specialized cutting tools designed for precision in cutting heat shrinkable tubes.

4. Applying the Tube:

  - Even Application: Slide the tube onto the cable or component, ensuring an even application along the entire length.

  - Tools: Use your hands or specialized tube applicators to guide the tube onto the desired area smoothly. Be cautious not to stretch the tube excessively.

5. Overlap and Junctions:

  - Overlap for Complete Coverage: If multiple tubes are required for longer lengths, ensure a slight overlap between adjacent tubes to guarantee complete coverage.

  - Tools: Use heat-resistant tape or additional tube sections to create overlaps and secure junctions. This ensures a continuous protective layer.

6. Choosing the Right Heat Source:

  - Controlled Heat Application: Heat is the key to activating the shrinking process. Select a heat source that allows for controlled and even application of heat.

  - Tools: Use heat guns, hot air blowers, or other tools designed for precise heat application. Adjust the temperature and airflow settings as needed.

7. Maintaining a Safe Distance:

  - Preventing Damage: While applying heat, maintain a safe distance between the heat source and the tube to prevent overheating or damage.

  - Tools: Heat guns with adjustable nozzles or diffusers provide control over the heat application distance, minimizing the risk of damage.

8. Ensuring Uniform Shrinkage:

  - Even Distribution: Focus on achieving uniform shrinkage of the tube to ensure a tight fit without irregularities.

  - Tools: Move the heat source evenly along the length of the tube, paying attention to any areas that may require additional heat for complete shrinkage.

9. Final Inspection and Quality Check:

  - Thorough Examination: After the shrinking process, conduct a thorough inspection to ensure that the tube has adhered uniformly and there are no gaps or irregularities.

  - Tools: Use magnifying glasses, if necessary, to inspect small or intricate areas. Ensure that the tube meets the desired quality standards.

10. Cooling Period:

   - Allowing Adequate Cooling Time: After the shrinking process, allow the tubes to cool adequately before subjecting them to further stress or handling.

   - Tools: No specific tools are required for cooling, but patience is crucial. Avoid premature handling to prevent deformation.

Conclusion:

Installing low voltage heat shrinkable tubes demands precision, attention to detail, and the use of appropriate tools. By following the recommended procedures and selecting the right tools, one can ensure a seamless application that maximizes the effectiveness and longevity of these essential components in electrical insulation. As we embark on the journey of precision in action, the installation of heat shrinkable tubes becomes a testament to expertise and a commitment to excellence in the intricate tapestry of electrical engineering.
