Getting Started with the TC-RK3566 SOM: Installation and Development Guide

Introduction

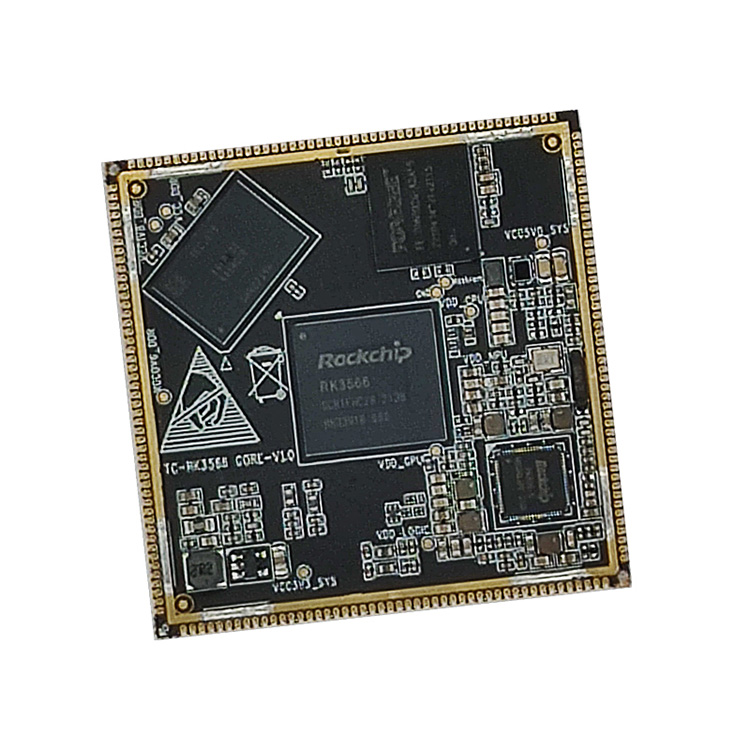

The TC-RK3566 System on Module (SOM) is an advanced solution for developing embedded systems, offering powerful performance and versatile connectivity options. Whether you are a seasoned developer or new to embedded systems, getting started with the TC-RK3566 SOM can open up a world of possibilities. In this blog, we will provide a step-by-step guide on how to install and develop with the TC-RK3566 SOM, helping you to harness its full potential.

Unpacking and Initial Setup

1. Unboxing the TC-RK3566 SOM

Begin by unboxing your TC-RK3566 SOM kit. Ensure that all components are present, including the SOM module, any necessary cables, and documentation. Verify that the module is free from any physical damage.

2. Preparing the Development Environment

Set up your development environment by gathering the necessary tools and software. You will need:

- A development board: Compatible with the TC-RK3566 SOM.

- Power supply: Ensure it meets the voltage and current requirements of the module.

- Cables: HDMI, USB, Ethernet, and any other necessary cables for connectivity.

- Computer: With the appropriate IDE (Integrated Development Environment) and software tools installed.

Installing the TC-RK3566 SOM

1. Mounting the SOM on the Development Board

Carefully mount the TC-RK3566 SOM onto the development board. Ensure that the pins align correctly and that the module is securely connected. Follow any specific instructions provided in the user manual.

2. Connecting Peripherals

Connect the necessary peripherals to the development board:

- Display: Connect an HDMI cable from the development board to a monitor or display.

- Keyboard and Mouse: Connect via USB ports.

- Network: Connect an Ethernet cable if network connectivity is required.

- Power Supply: Connect the power supply to the development board.

3. Powering Up

Once all connections are made, power up the development board. The TC-RK3566 SOM should initialize, and you should see output on the connected display.

Software Setup

1. Installing the Operating System

The TC-RK3566 SOM supports various operating systems, including Linux and Android. Download the appropriate OS image from the official website or repository. Follow these steps to install the OS:

- Prepare a Bootable SD Card: Use software like Etcher to write the OS image to an SD card.

- Insert the SD Card: Insert the prepared SD card into the development board’s SD card slot.

- Boot the System: Power on the board and follow the on-screen instructions to complete the OS installation.

2. Setting Up the Development Environment

Once the OS is installed, set up the development environment:

- Install Necessary Drivers: Ensure all drivers are installed for the peripherals and components.

- Install Development Tools: Depending on your project, install tools such as GCC, Python, or any specific IDEs (e.g., Eclipse, VS Code).

- Network Configuration: Configure the network settings to enable internet access and remote development if needed.

Developing with the TC-RK3566 SOM

1. Writing Your First Program

Begin by writing a simple program to test the setup.

2. Compiling and Running the Program

- Save the Program: Save your program file with a .py extension.

- Run the Program: Open a terminal and navigate to the directory where the file is saved.

3. Debugging and Testing

Use debugging tools to test and debug your program. Tools like GDB (GNU Debugger) for C/C++ or PDB (Python Debugger) for Python can be extremely helpful.

Advanced Development

1. Using the GPU for Graphics

Leverage the integrated ARM Mali-G52 GPU for graphics-intensive applications. Install necessary libraries and frameworks like OpenGL or Vulkan to develop high-performance graphical applications.

2. Utilizing Connectivity Options

Explore the various connectivity options provided by the TC-RK3566 SOM. Develop applications that utilize USB, HDMI, Ethernet, and PCIe interfaces for enhanced functionality.

3. Deploying Applications

Once your application is developed and tested, deploy it on the target system. Ensure that all dependencies are included and that the application is optimized for performance.

Conclusion

The TC-RK3566 SOM is a powerful and versatile module for developing embedded systems. By following this guide, you can set up and begin developing with the TC-RK3566 SOM, unlocking its full potential for your projects. Whether you are creating industrial automation systems, smart home devices, or multimedia applications, the TC-RK3566 SOM provides the performance and flexibility needed to succeed. Embrace the future of embedded systems with the TC-RK3566 SOM and bring your innovative ideas to life.
